Product Overview

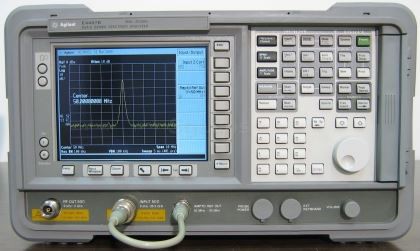

AGILENT KEYSIGHT E4407B SPECTRUM ANALYZERS
For general spectrum analysis of RF or microwave signals, the Keysight E4407B Spectrum Analyzer offers a good solution. The feature set of the E4407B includes an advanced set of firmware features and functions in an upgradable platform. Optional measurement features available such as noise figure and phase noise.
For spectrum analysis focused specifically in demodulation of wireless signals. Customers looking to use the 89601A VSA software should be considered.
The standard E4407B spectrum analyzer includes a wide set of built-in functions and features, while maintaining the flexibility to add the most popular ESA options. The standard analyzer provides the best value in spectrum analysis with performance tied to traceable specifications, worldwide support, and the most comprehensive set of instrument features for an economy spectrum analyzer which include:
● 0.4 dB overall amplitude accuracy
● 10 Hz RBW (1 Hz with option)
● +16 dBm TOI
● FM demodulation
● Optional measurement applications including phase noise and noise figure
Key features and specifications of the Agilent E4407B Specrum Analyzer include:
Performance
● 0.4 dB overall amplitude accuracy
● -167 dBm DANL, with internal preamp
Measurement applications
● Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view full list of measurement applications, one-button power measurements included as standard
Features
● 10 MHz analysis bandwidth
● Segmented sweep for up to 32 discontinuous spans in one sweep
● Rugged and portable for lab grade performance in the field
● 5 minute warm-up to guaranteed measurement accuracy
Configuration selections
● Standard express analyzer E4407B-STD for faster delivery time, includes options AYX, BAA.
● Standard express analyzer with tracking generator E4407B-STG for faster delivery time, includes options 1DN, AYX, BAA.
● Communications test express analyzer E4407B-COM for faster delivery time, includes options 1D5, 1DR, B7D, B7E, BAA.
● Custom configuration for maximum flexibility with standard delivery time
