Curve Tracers and Power Device Analyzers

• Used USB Modular Source Measure Unit Agilent U2723A

  For quick setup, the Keysight U2723A Source Measure Unit comes bundled with the Agilent Measurement Manager (AMM) software, with user-friendly interface that allow users to configure their test...

• Used MPSMU Agilent E5281B

  The Keysight E5281B is a High Power Source / Measurement Unit (HPSMU), that works with the E5270B Parametric Measurement System Mainframe, 8-Slot.

• Used MPSMU Agilent E5281A

  ​The Keysight E5281A is a High Power Source / Measurement Unit (HPSMU), that works with the E5270A Parametric Measurement System Mainframe, 8-Slot.

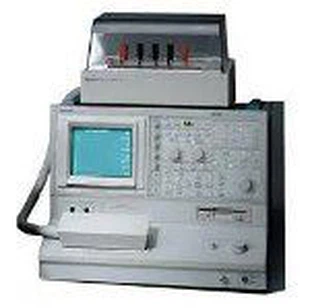

• Used High Power Curve Tracer Tektronix 371A

  It also permits high power testing up to 3,000 watts. In the R&D lab, the Tektronix 371A Curve Trace is used for characterization of new designs, extraction of SPICE parameters, failure analysis...

• Used High Power Curve Tracer Tektronix 371

  The pulsed high current collector mode provides output current pulses greater than 400 amps peak for testing On-characteristics. It also permits high power testing up to 3,000 watts.

• Used High Power Curve Tracer Tektronix 371B

  Interactive control of the Tektronix 371B measurements is accomplished from the full-featured front panel or over the GPIB. Every operating parameter can be controlled using the GPIB controller.

• Used HVSMU Agilent B1513A

  ​Source/Measure Units (SMUs), such as the Keysight B1513A (Agilent), are the key measurement modules of the Agilent / Keysight B1505A Power Device Analyzer / Curve Tracer.

• Used HCSMU Agilent B1512A

  ​Source/Measure Units (SMUs), such as the Keysight B1512A (Agilent), are the key measurement modules of the Agilent / Keysight B1505A Power Device Analyzer / Curve Tracer.

• Used Power Device Analyzer Keysight B1505A

  The Keysight B1505A (Agilent) Power Device Analyzer / Curve Tracer is the only single box solution available today with the capability to characterize high power devices from the sub-picoamp level...

• Used High Current Expander Fixture for B1505A Agilent N1265A

  The Keysight N1265A Ultra High Current Expander Unit (UHCU) works in conjuction with the Keysight B1505A Power Device Analyzer / Curve Tracer.

• Used Ultra High Voltage Expander Agilent N1268A

  The Keysight N1268A Ultra High Voltage Expander Unit (UHVU) works in conjuction with the Keysight B1505A Power Device Analyzer / Curve Tracer.

• Used Curve Tracer Tektronix 370

  The Tektronix 370 Curve Tracer is a high performance GPIB-programmable digital storage Curve Tracer that provides static and dynamic semiconductor device measurements.
