Pulse Pattern Generator

• Used Differential Output Module Tektronix DTGM32

  ●2 Ch., external jitter control input
  ●Jitter Frequency DC to 50 MHZ
  ​●Jitter amplitude up to 1ns/2ns

• Used Function Generator Tektronix AFG3252C

  Color TFT LCD screen shows all relevant waveform parameters and graphical wave shape at a single glance. This gives full confidence in the signal settings and lets you focus on the task at hand.

• Used Function Generator Tektronix AFG3252

  The Tektronix AFG3252 features large screen which shows all relevant waveform parameters and graphical waveshape at a single glance. This gives full confidence in the signal settings and lets you...

• Used Function Generator Tektronix AFG3251

  On pulse waveforms, leading and trailing edge time can be set independently. External signals can be connected and added to the output signal. Dual-channel models can generate two identical or...

• Used Arbitrary Waveform Generator SR DS345

  It generates many standard waveforms with excellent frequency resolution (1 µHz), including: sine waves and square waves at frequencies up to 30.2 MHz, and triangle and ramp waveforms up to 100 kHz.

• Used Waveform Generator SR DS340

  Both internal and external FSK modes allow the output frequency to be rapidly toggled between two preset values. FSK toggling can be done internally (at rates up to 50 kHz), or externally via a...

• Used Pulse Generator Stanford Research DG535

  The high accuracy, low jitter, and wide delay range make the DG535 ideal for laser timing systems, automated testing, and precision pulse applications.

• Used Pulse Generator Agilent 81160A

  The Keysight 81160A (Agilent) Pulse Function Arbitrary Noise Generator is a high precision pulse generator enhanced with versatile signal generation, modulation and distortion capabilities that...

• Used Pulse Generator Agilent 81150A

  The 2 channel version of the Agilent 81150A Pulse Function Arbitrary Noise Generator allows coupling / uncoupling of the channels so that you can generate signals with a defined delay or the...

• Used Pulse Data Generator Agilent 8114A

  ●Fast, clean positive or negative pulses up to 100 V at frequencies up to 15 MHz
  ●User-definable limits for voltage, current and duty cycle
  ●TLL input: allows the output to be...

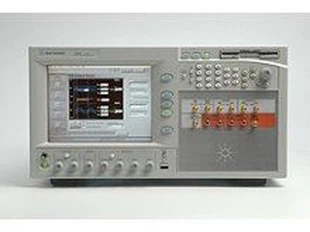

• Used Pulse Data Generator Agilent 81142A

  ●Pulse, Data Pattern and PRBS generation up to 13.5 GHz
  ●Differential outputs for data, clock and trigger
  ●Trigger and external clock input
  ●Fastest transition times < 20...

• Used Pulse Data Generator Agilent 81141A

  ●Data formats: RZ, R1, NRZ
  ●Duty cycle: 70ps to period -70ps
  ●Clock/data delay range: ±0.75 ns with a 100 fs resolution
  ●Delay modulation range: -100 ps to 100 ps ...
