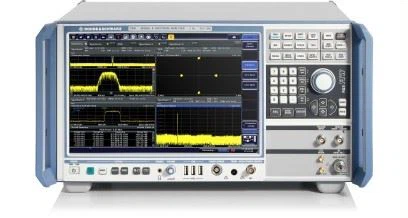

The high performance Rohde & Schwarz (R&S) FSW26 Signal and Spectrum Analyzer is designed for convenience, accuracy and speed. Its unique touchscreen, straightforward, multiview result display, and optimized user guidance makes operation of the R&S FSW26 Analyzer efficient and convenient. With its unmatched phase noise, unparalleled dynamic range for spurious measurements, and high sensitivity even at low frequences, the R&S FSW26 guarantees high accuracy. Efficient measurement rates, rapid sweep times, quick switchover between instrument setups, makes operation fast and easy.
Features and Specifications of :
Features of:
●Excellent dynamic range for spurious measurements because of low DANL
●Harmonic measurements made easy and accurate due to integrated highpass filters:
oHigh sensitivity even at low frequencies
oUnparalleled dynamic range up to 1 GHz with separate receive path
●Up to 500 MHz analysis bandwidth
●High spurious-free dynamic range of > 100 dBc
●Large I/Q memory depth for seamless recording of long signal sequences
●Efficient operation with optimized user guidance
●MultiView: multiple results available at a glance
●Ideal for measuring oscillators for radar and communications applications as well as for analyzing radar systems:
oFast identifcation and analysis of spurious emissions
oMeasuring pulse parameters at the touch of a key
oDetection of widespread frequency-hopping signals
oAnalyzing short pulse rise and fall times
●Identifying interaction between signals
oMultistandard radio analyzer (MSRA)
oMultistandard realtime analyzer (MSRT)
●High measurement rates and fast sweep times with sweep rates of up to 1000 sweeps/s
●Fast switchover between instrument setups
●Efficient measurement functions speed up operation
●Integrated support of R&S®NRP-Zxx power sensors
Specifications of the Rohde & Schwarz FSW26 Signal and Spectrum Analyzer:
●Frequency:
oFrequency range: 2 Hz to 26.5 GHz
oAging of frequency reference: 1 x 10-7/year
■With R&S®FSW-B4: 3 x 10-8/year
●Bandwidths:
oResolution bandwidths:
■Standard filter: 1 Hz to 10 MHz
■With R&S®FSW-B8: 80 MHz
■RRC filter:
■NADC: 18 kHz
■TETRA: 24.3 kHz
■3GPP: 3.84 MHz
■Channel filter: 100 Hz to 5 MHz
■Video filter: 1 Hz to 10 MHz
oI/Q Demodulation bandwidth: 10 MHz
■With R&S®FSW-B28: 28 MHz
■With R&S®FSW-B40: 40 MHz
■With R&S®FSW-B80: 80 MHz
■With R&S®FSW-B160: 160 MHz
■With R&S®FSW-B320: 320 MHz
■With R&S®FSW-B500: 500 MHz
●Displayed average noise level (DANL):
o2 GHz: -156 dBm (1 Hz) typical
oWith R&S®FSW-B13: -159 dBm (1 Hz) typical
o8 GHz: -156 dBm (1 Hz) typical
o20 GHz: -150 dBm (1 Hz) typical
o40 GHz: -144 dBm (1 Hz) typical
oDANL with preamplifier (with R&S®FSW-B24):
■8 GHz -169 dBm (1 Hz) typical
■20 GHz -166 dBm (1 Hz) typical
■40 GHz -165 dBm (1 Hz) typical
oDANL with noise cancellation, preamplifier off: -169 dBm (1 Hz) typical
●Intermodulation:
oThird-order intercept (TOI):
■f < 1 GHz: +30 dBm (typical)
■f < 3 GHz: +25 dBm (typical)
■8 GHz to 26 GHz: +17 dBm (typical)
■13.6 GHz to 26 GHz: +15 dBm (typical)
●WCDMA ACLR dynamic range:
oWith noise cancellation: 88 dB
●Phase noise:
o10 kHz offset from carrier:
■500 MHz carrier: -140 dBc (1 Hz) typical
■1 GHz carrier: -137 dBc (1 Hz) typical
■10 GHz carrier: -128 dBc (1 Hz) typical
●Total measurement uncertainty: 8 GHz < .04 dB
