Oscilloscopes

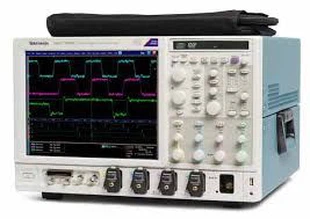

• Used Oscilloscope Tektronix DPO71604C

  The Tektronix MSO/DPO70000 Series oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.

• Used Module Agilent 86109B

  40 GHz of unfiltered optical bandwidth is essential now that return-to-zero (RZ) modulation formats are being used in 40 Gb/s transmission systems under development.

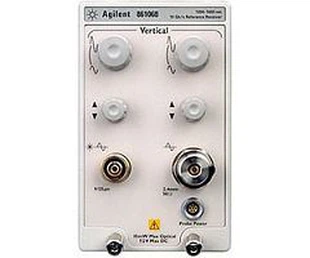

• Used Module Agilent 86106B

  The frequency-response variation of the unfiltered optical channel also has been improved to minimize the distortion on measured optical pulses. A 40 GHz electrical channel is available for...

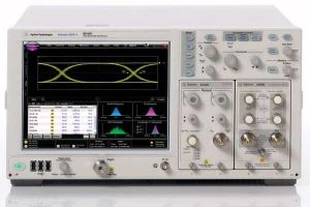

• Used Oscilloscope Mainframe Agilent 86100D

  The mainframe provides the foundation for powerful insight and measurement capability, such as de-embedding of cables and fixtures, that improve margins and allow engineers to see the true...

• Used Oscilloscope Mainframe Agilent 86100C

  A full-function time domain reflectometer (TDR/TDT) for high precision impedance and S-parameter analysis

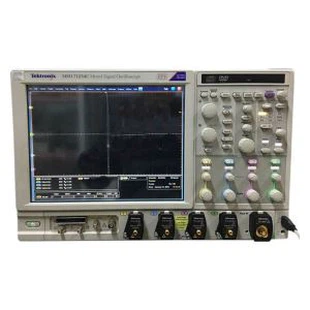

• Used Serial Analyzer Tektronix MSO71254C

  To verify serial architectures, the serial pattern triggering for NRZ serial data streams with built-in clock recovery in the MSO71254C Oscilloscope allows correlating events across physical and...

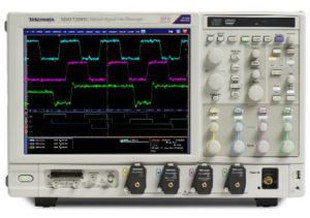

• Used Serial Analyzer Tektronix DSA71254C

  Tektronix DSA71254C Digital Oscilloscope, 12.5 GHz, 4 Ch.

• Used Serial Analyzer Tektronix DSA71254

  Tektronix DSA71254 Digital Oscilloscope, 12.5 GHz, 4 Ch.

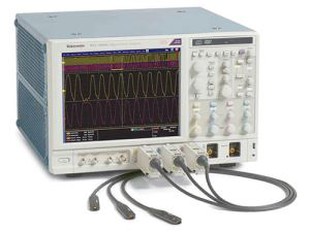

• Used Oscilloscope Tektronix DPO71254C

  Oscilloscope, 12.5 GHz, 4 Ch., 100 GS/s / 50 GS/s

• Used Oscilloscope Tektronix DSA70804C

  To debug serial architectures, the Tektronix DSA70804C features the NRZ serial pattern triggering and protocol decode with built-in clock recovery. Users can synchronize long serial test pattern...

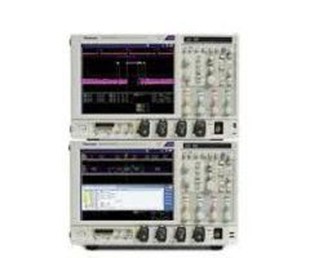

• Used Oscilloscope Tektronix DPO70604C

  Single-shot bandwidths up to 23 GHz on all four channels ensure that you'll capture your signals of interest without worrying about undersampling when using more than 1 or 2 channels.

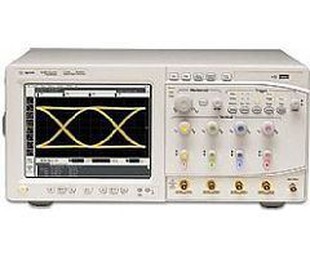

• Used Oscilloscope Agilent DSO80804B

  ●Noise floor: 294 uV @5 mV/div
  ●Trigger jitter < 500 fs (rms)
  ●Lowest hardware vertical sensitivity: 5 mV/div
