Our Used Calibration Kit Agilent 85033E, Used Oscilloscope Tektronix DSA70804C, Used DC Power Supply Agilent N8925A integrate beautiful appearance, scientific manufacturing technology and high cost performance. We always firmly believe that the development of an enterprise must have a broad vision, a continuous spirit of innovation, and timely adjustment of development strategies according to market needs. We challenge the future and serve the society with a friendly and fair competition attitude. Our products are best sold not only in the Chinese market, but also welcomed in the international market. All things in the world are made great and noble because of responsibility. Therefore, we have always regarded responsibility as the cornerstone of our company's ethics and behavior.

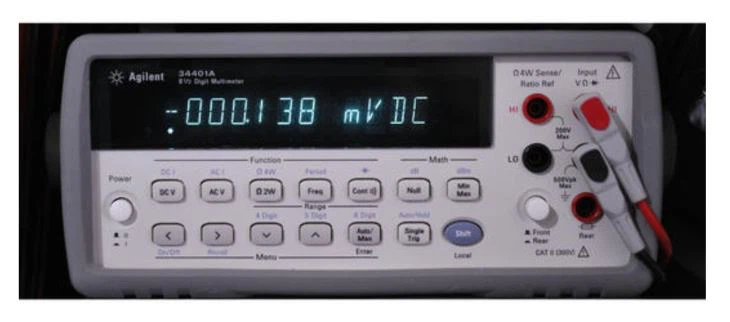

A digital multimeter (DMM) is a device that provides multiple types of measurements within one device. DMMs uses a more accurate and readable digital output than an analog solution. Without using a DMM to immediately measure live voltage and currents, there is a risk of painful shocks that can even be lethal. Therefore, it poses as a serious safety hazard.
Modern multimeters are often digital due to their accuracy, durability and extra features. In a digital multimeter the signal under test is converted to a voltage and an amplifier with electronically controlled gain preconditions the signal. A digital multimeter displays the quantity measured as a number, which eliminates parallax errors.
Modern digital multimeters may have an embedded computer, which provides a wealth of convenience features. Measurement enhancements available include:
●Auto-ranging, which selects the correct range for the quantity under test so that the most significant digits are shown. For example, a four-digit multimeter would automatically select an appropriate range to display 12.34 mV instead of 0.012 V, or overloading. Auto-ranging meters usually include a facility to hold the meter to a particular range, because a measurement that causes frequent range changes can be distracting to the user.
●Auto-polarity for direct-current readings, shows if the applied voltage is positive (agrees with meter lead labels) or negative (opposite polarity to meter leads).
●Sample and hold, which will latch the most recent reading for examination after the instrument is removed from the circuit under test.
●Current-limited tests for voltage drop across semi conductor junctions. While not a replacement for a proper transistor tester, and most certainly not for a swept curve tracer type, this facilitates testing diodes and a variety of transistor types.[18]
●A graphic representation of the quantity under test, as a bar graph. This makes go/no-go testing easy, and also allows spotting of fast-moving trends.
●A low-bandwidth oscilloscope.[19]
●Automotive circuit testers, including tests for automotive timing and dwell signals (dwell and engine rpm testing is usually available as an option and is not included in the basic automotive DMMs).
●Simple data acquisition features to record maximum and minimum readings over a given period, or to take a number of samples at fixed intervals.[20]
●Integration with tweezers for surface-mount technology.[21][better source needed]
●A combined LCR meter for small-size SMD and through-hole components.[22]
Modern meters may be interfaced with a personal computer by IrDA links, RS-232 connections, USB, or an instrument bus such as IEEE-488. The interface allows the computer to record measurements as they are made. Some DMMs can store measurements and upload them to a computer.[23]
The first digital multimeter was manufactured in 1955 by Non Linear Systems.[24][25] It is claimed that the first handheld digital multimeter was developed by Frank Bishop of Intron Electronics in 1977,[26] which at the time presented a major breakthrough for servicing and fault finding in the field.
To create much more price for Hot Sale 6000 Counts Digital Multimeters with T-RMS/Autorange. We take every effort to control the quality, package, labels etc and our QC will check every detail during producing and before shipment. We serve customers with heart, and insist on impressing customers with our own services.
Hot Tags: digital multimeter, China, manufacturers, Suppliers, Factory, buy, low price, in stock, Used Power Supply Agilent E3642A, Used Semiconductor Device Analyzer Agilen B1500A, Used Network Analyzer Agilent 8719ES, Used High Resistance Meter Agilent 4349A, Used Pulsed Laser Diode Keithley 2520, Used Digital Serial Analyzer Tektronix DSA71604
