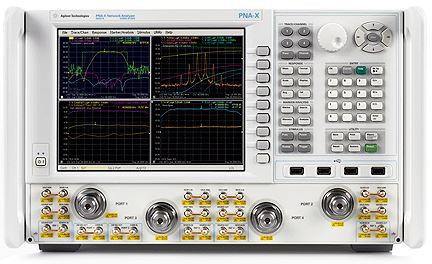

The Keysight N5247A Network Analyzer (PNA-X Series) is the highest-performing microwave network analyzer in the industry for passive and active device test with a frequency range of 10 MHz to 67 GHz and offers many advanced measurement applications.

The Keysight N5247A Network Analyzer is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters as well as millimeter-wave, S-Parameters (CW and pulsed), signal integrity, Noise Figure, Gain Compression, Intermodulation and harmonic distortion, Conversion Gain/Loss, Nonlinear waveform and X-Parameter characterization and materials measurements.

The N5247A provides high-power sources and the best linear receivers available (at time of product introduction), giving it the most accurate S-parameter measurements with the widest power range in the market.

Key features and specifications of:

●10 MHz to 67 GHz frequency range

●2-ports or 4-ports with two built-in sources

●Enables 4-port 110 GHz single-sweep solution

●110 dB system dynamic range, 100,001 points, 200 channels, 15 MHz IF bandwidth

●High output power (+10 dBm at 67 GHz) and a wide power sweep range (40 dB)

●Dynamic accuracy: 0.1 dB compression with +11 dBm input power at 67 GHz

With the Keysight N5247A VNA, a wide variety of applications of any network analyzer:

●S-parameters (CW and pulsed)

●Noise figure

●Gain compression

●Intermodulation and harmonic distortion
