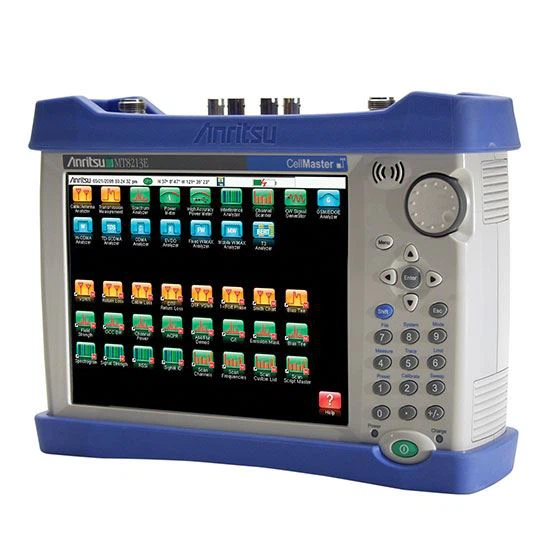

The Anritsu MT8213E Base Station Analyzer was designed for installation and maintenance of wireless networks. Designed as a lightweight base station analyzer meeting virtually all the testing needs of an RF technician, the Cell Master features Signal Analyzer options for 2G, 3G, and 4G cellular networks including LTE, WiMAX, and digital broadcast.
Features of:
●30 Analyzers in one
●Cable and Antenna Analyzer: 2 MHz – 6 GHz
●Return Loss, Cable Loss, VSWR, Distance-To-Fault
●Phase, 2-port Transmission Measurements
●Spectrum Analyzer: 9 kHz – 6 GHz
●Interference Analyzer with Interference Mapping, GPS
●High Accuracy Power Meter
●3GPP, including LTE/LTE-A, 3GPP2 and WiMAX signal analyzers
●ISDB-T and DVB-T/H signal analyzers
●CPRI RF Measurements
●Indoor and outdoor coverage mapping
●Easy-to-use Touch screen
●USB connectivity
●Most compact handheld
●PIM Alert (a downloadable easyTest™ script)
Cable and Antenna Analyzer Highlights of the MT8213E include:
●Measurements: RL, VSWR, Cable Loss, DTF, Phase
●2-port Transmission Measurement: High/Low Power
●Sweep Speed: 1 ms/data point, typical
●Display: Single or Dual Measurement Touchscreen
●Calibration: OSL, InstaCal™, and FlexCal™
●Bias Tee: 32 V internal
Spectrum Analyzer and Interence Analyzer Highlights of the MT8213E include:
●Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I
●Interference Analyzer: Spectrogram, Signal Strength, RSSI, Interference Mapping
●Dynamic Range: > 102 dB in 1 Hz RBW
●DANL: –162 dBm in 1 Hz RBW
●Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz
●Frequency Accuracy: ± 50 ppb with GPS On
Capabilities and Functional Highlights of the Anritsu MT8213E include:
●CPRI RF Measurements •
●LTE/LTE-A FDD/TDD
●GSM/EDGE
●W-CDMA/HSPA+
●TD-SCDMA/HSPA+
●CDMA, EV-DO
●Fixed, Mobile WiMAX
●EMF Test
●USB Power Sensors up to 50 GHz
●Coverage Mapping
●3 hour battery operation time
●USB or optional Ethernet data transfer
●PIM Alert Application
●ISDB-T, ISDB-T SFN
●DVB-T/H, DVB-T/H SFN
●Interference Analyzer
●GPS information on stored traces
●Built-in Bias Tee
●Internal Power Meter
●High Accuracy Power Meter
●Master Software Tools™
●Line Sweep Tools™
●easyTest Tools™
●Web Remote Control with Ethernet option
